Flush Panel – 1” & 1.5”

FLUSH SEAM PANEL

The Flush Seam panel is our most versatile panel that can be installed for wall, soffit, fascia, and screen wall applications. The panel is secured with concealed fasteners and does not require clips. The Flush Seam panel can be manufactured in a vented, pencil rib, or smooth profile.

Flush Seam panel

Available Materials
Galvalume (22 & 24 gauge)
Aluminum (.032, .040, .050)
Copper (16 & 20 oz)

Available Widths
12” – 20”

Panel Options
Flat
Perforated (24 gauge & .032 Only)
V-Groove
Double V-Groove

Substrate Requirements
Can be installed over Solid Substrate or on Open Framing.

Finish
Kynar 500 (Fluoropolymer PVDF Coating)

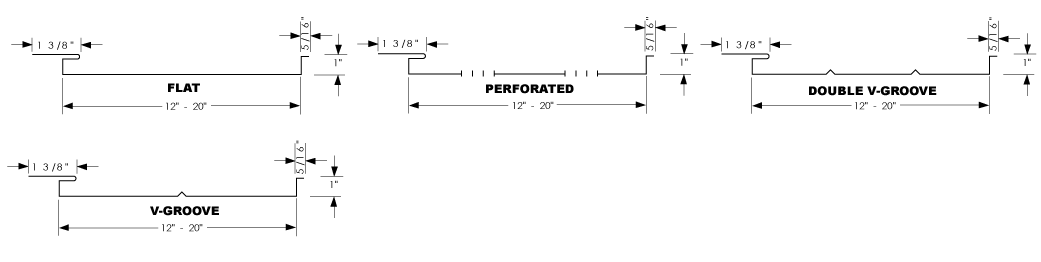

Flush Seam profiles

Finish Warranties

40-Year Limited COOLR “Paint” Warranty-AZ50 Galvalume®, G90 Galvanized, or Aluminum (PDF)

Coastal Finish Warranty (PDF)

Material Warranty

Galvalume Substrate Warranty (PDF)

Galvalume Plus Substrate Warranty (PDF)

Aluminum Substrate Warranty (PDF)

Panel Performance
ASTM 1592 (Uplift) Aluminum, Galvalume

Can be engineered to current ASCE 7 design standard

Energy Star

All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info …

LEED

Our product can qualify for the following LEED Credits

SS Credit 7.2 Heat Island Effect: Roof

MR Credit 4.1 Recycled Content

MR Credit 5.1 Regional Materials

Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
