MRS 2000
U.L. 580 Class 90 Certified
ASTM E1680-95, E1646-95, E1592-95

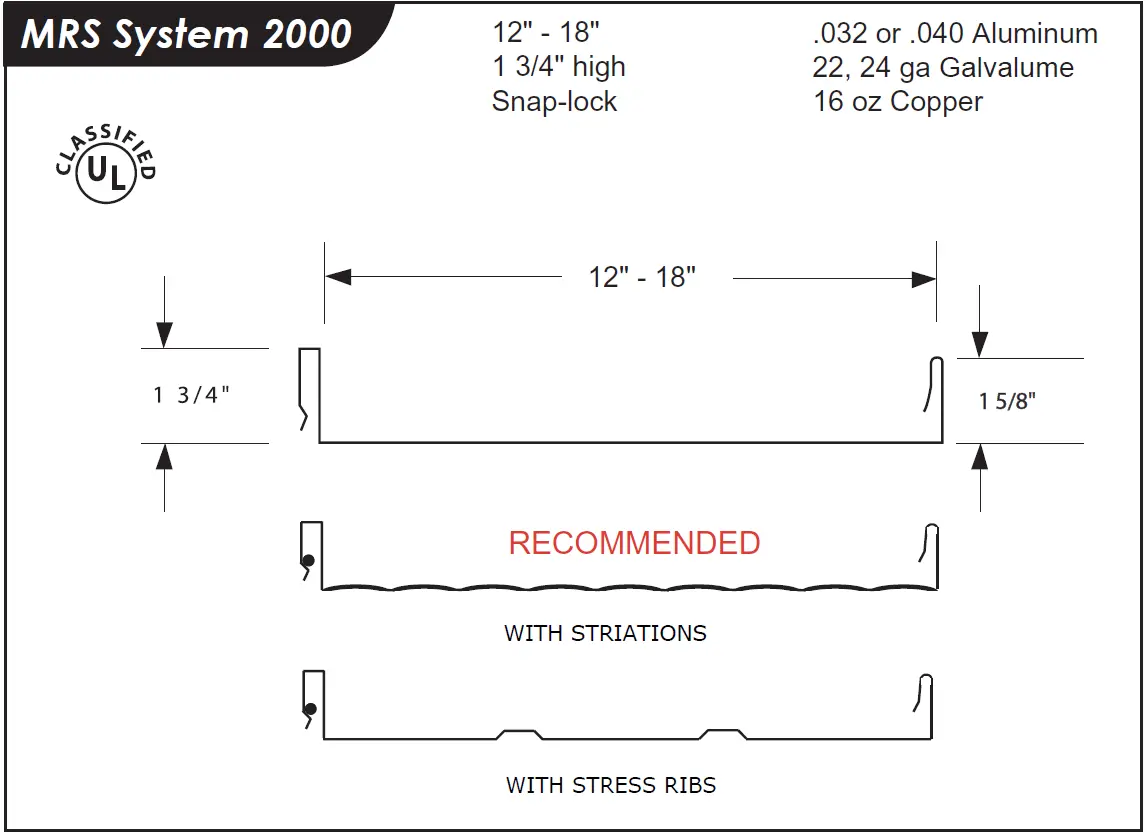

The MRS System 2000 Ideal for large commercial installations
Material:
.032 or .040 Aluminum, 22 or 24 ga Galvalume, 16 oz Copper
12″ – 18″ o.c.
Features:
- Flat
- * Striations (MRS Recommended)
- Stress Ribs
- Optional Sealant in Female leg of panel
Requirements:
- Solid substrate, Open Framing
- 30# Felt or Ice & Water Shield
- Clips spaced at 30″ o.c. max (2 Fasteners per Clip)
- Clips spaced at 48″ o.c. max for 18″ panel on Open Framing (2 Fasteners per Clip)
- Clips spaced at 60″ o.c. max for 16″ panel on Open Framing (2 Fasteners per Clip)
Finish:
Hylar 5000 or Kynar 500
U.L. 580 Class 90 Certified
ASTM E1680-95, E1646-95, E1592-95
Solid Substrate
Ice & Water Shield or Synthetic Underlayment
Minimum Roof Pitch: 3” on 12”
