Nailstrip – 1” & 1.5”

SNAP LOCK

The nailstrip panel is ideal for light commercial or residential applications. The panel is a concealed fastener panel system that offers easy installation and does not require clips. The panels snap together without the use of any special tool.

nailstrip roof panel

Available Materials
Galvalume (22, 24, 26 gauge)
Aluminum (.032, .040)
Copper (16 & 20 oz)

Available Widths
12” – 16”

Panel Options
Flat
Striations

Substrate Requirements
Can be installed over Solid Substrate

Minimum Roof Pitch
3:12

Underlayment
Ice & Water Shield (Recommended) or Synthetic Underlayment.

Finish
Kynar 500 (Fluoropolymer PVDF Coating)

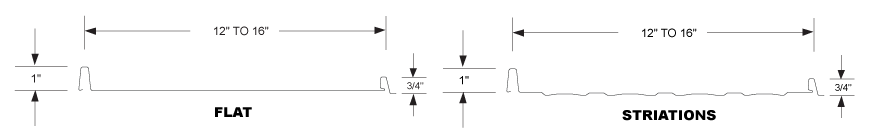

nailstrip profiles

Finish Warranties

40-Year Limited COOLR “Paint” Warranty-AZ50 Galvalume®, G90 Galvanized, or Aluminum (PDF)

Coastal Finish Warranty (PDF)

Material Warranty

Galvalume Substrate Warranty (PDF)

Galvalume Plus Substrate Warranty (PDF)

Aluminum Substrate Warranty (PDF)

Energy Star

All of our metal panels are Energy Star certified and qualify for a federal tax credit. More Info …

LEED

Our product can qualify for the following LEED Credits

SS Credit 7.2 Heat Island Effect: Roof

MR Credit 4.1 Recycled Content

MR Credit 5.1 Regional Materials

Please contact Metal Roofing Systems to find out if your project will qualify for these LEED credits.
