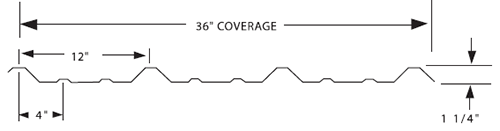

PBR Panel – 1.25”
THRU FASTENED PANEL
The R Panel can be installed in a wide range of commercial and residential applications. The panel is a multi-use roof and wall panel that is secured with fasteners through the panel. The panel has excellent purlin spanning capabilities.
Available Materials
Galvalume (24, 26 gauge)
Available Widths
36”
Substrate Requirements
Can be installed over Solid Substrate or on Open Framing.
Minimum Roof Pitch
1:12
Recommendation
Solid Substrate requires 30# Felt, Ice & Water Shield or Synthetic Underlayment.
Finish
Kynar 500 (35 year non-prorated finish warranty)
Kynar Finish Warranties
- 40-Year Limited PVDF (Kynar) Warranty – AZ50 Galvalume, G90 Galvanized, or Aluminum – SAMPLE (PDF)
- 35 Year Coastal PVDF (Kynar) Warranty – Aluminum Only – SAMPLE (PDF)
Siliconized Polyester Finish Warranty
